System Architecture

This page describes PostGuard's components, how they communicate, and the key hierarchy that makes Identity-Based Encryption work.

Components

PostGuard consists of four main parts:

Component	Role	Required?
PKG server (pg-pkg)	Trusted server that holds the master key pair. Publishes the Master Public Key, verifies identities via Yivi, and issues decryption and signing keys.	Yes
Yivi app	Mobile identity wallet. Users prove they own an email address (or other attributes) by scanning a QR code.	Yes (for decryption and peer-to-peer signing)
Client SDK (@e4a/pg-js)	JavaScript/TypeScript library that handles encryption, decryption, policy building, and communication with the PKG and Cryptify. Uses @e4a/pg-wasm for cryptographic operations.	Yes
Cryptify	File hosting service for encrypted files. Handles upload, download, and optional email notifications.	No, you can deliver ciphertext yourself

There are also client applications built on the SDK:

Application	Description
PostGuard website	SvelteKit web app for encrypting and sharing files via Cryptify
Thunderbird addon	Extension for Thunderbird 128+ that encrypts and decrypts emails
Outlook addon	Office add-in that encrypts and decrypts emails in Outlook
CLI tool (pg-cli)	Command-line tool for encrypting and decrypting files

Key Hierarchy

PostGuard's cryptography is built on a two-level key hierarchy:

Master Key Pair (lives on the PKG server)
  |
  +-- Master Public Key (MPK)
  |     Published at GET /v2/parameters
  |     Fetched by senders before encryption
  |     Combined with recipient identity + timestamp to encrypt
  |
  +-- Master Secret Key (MSK)
        Never leaves the PKG
        Used to derive User Secret Keys
              |
              +-- User Secret Key (USK)
                    Derived from MSK + recipient identity + timestamp
                    Issued to recipient after identity verification
                    Time-limited (expires at 4 AM next day)
                    Used to decrypt ciphertext

The PKG also holds a separate IBS master key pair for Identity-Based Signatures (the GG scheme). This produces signing keys and a public verification key:

IBS Master Key Pair (lives on the PKG server)
  |
  +-- Verification Key
  |     Published at GET /v2/sign/parameters
  |     Used by recipients to verify sender signatures
  |
  +-- IBS Master Secret Key
        Used to derive per-sender signing keys

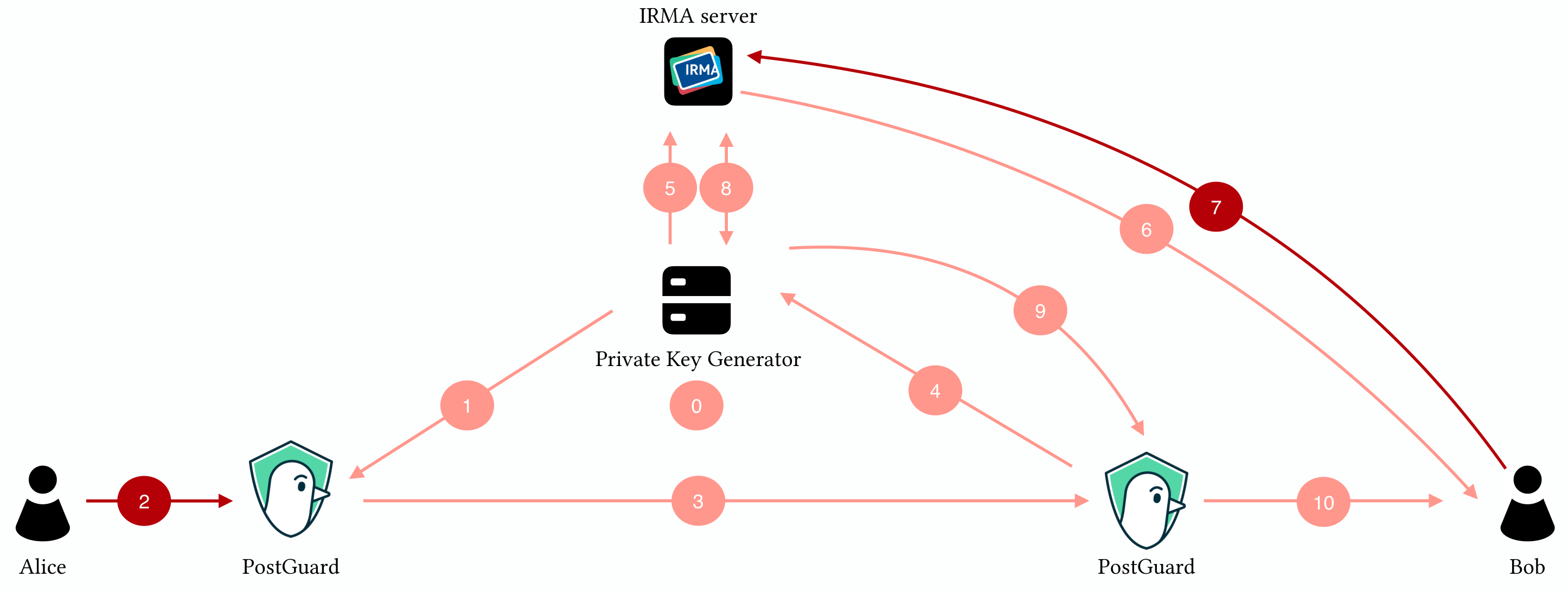

Encryption Flow

Here is what happens when a sender encrypts data:

Sender Application                    PKG Server
       |                                   |
       |  1. GET /v2/parameters            |
       |---------------------------------->|
       |  <- Master Public Key (MPK)       |
       |<----------------------------------|
       |                                   |
       |  2. POST /v2/irma/sign/key        |
       |  (with API key or Yivi JWT)       |
       |---------------------------------->|
       |  <- Signing keys (pub + priv)     |
       |<----------------------------------|
       |                                   |
       |  3. Build encryption policy       |
       |  (recipient email + timestamp)    |
       |                                   |
       |  4. Seal data                     |
       |  MPK + policy + signing keys      |
       |  --> encrypted ciphertext         |
       |                                   |
       |                          Cryptify (optional)
       |  5. Upload ciphertext             |
       |---------------------------------->|
       |  <- UUID                          |
       |<----------------------------------|

Step by step:

1. The SDK fetches the Master Public Key from the PKG. This is a single GET request. The result can be cached (the PKG supports ETags and Cache-Control headers).
2. The sender authenticates (via API key or Yivi) to obtain signing keys that embed their identity in the ciphertext. The PKG returns both a public signing key and an optional private signing key.
3. The SDK builds an encryption policy: a mapping from each recipient's identifier to the attributes they must prove, plus a timestamp for key expiry.
4. The SDK seals the data using the @e4a/pg-wasm WebAssembly module. For files, the SDK creates a ZIP archive, then encrypts the ZIP stream. The output is a binary blob that can only be decrypted by someone who satisfies the policy.
5. Optionally, the ciphertext is uploaded to Cryptify, which returns a UUID. Cryptify can also send email notifications to recipients.

Decryption Flow

Here is what happens when a recipient decrypts:

Recipient App         PKG Server         Yivi App (phone)
      |                    |                     |
      |  1. Download       |                     |
      |  ciphertext        |                     |
      |  (from Cryptify    |                     |
      |   or other source) |                     |
      |                    |                     |
      |  2. Parse header   |                     |
      |  (extract policy   |                     |
      |   + timestamp)     |                     |
      |                    |                     |
      |  3. POST /v2/request/start               |
      |  (attribute disclosure request)          |
      |------------------->|                     |
      |  <- session data   |                     |
      |<-------------------|                     |
      |                    |                     |
      |  4. Display QR code                      |
      |  ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~> |
      |                    |  5. User scans QR   |
      |                    |  and approves        |
      |                    |<--------------------|
      |                    |  (cryptographic      |
      |                    |   proof of identity) |
      |                    |                     |
      |  6. GET /v2/request/jwt/{token}          |
      |------------------->|                     |
      |  <- JWT (proof)    |                     |
      |<-------------------|                     |
      |                    |                     |
      |  7. GET /v2/irma/key/{timestamp}         |
      |  (Authorization: Bearer <jwt>)           |
      |------------------->|                     |
      |  <- User Secret    |                     |
      |     Key (USK)      |                     |
      |<-------------------|                     |
      |                    |                     |
      |  8. Unseal data    |                     |
      |  USK + ciphertext  |                     |
      |  --> plaintext     |                     |

Step by step:

1. The recipient obtains the ciphertext (downloaded from Cryptify, received as an email attachment, extracted from an HTML body, etc.).
2. The SDK parses the ciphertext header to extract the policy: which attributes are required and what timestamp was used. It also extracts the sender's public identity if the message was signed.
3. The SDK starts a Yivi session via the PKG, requesting the attributes specified in the policy.
4. The application displays a QR code (or triggers a deep link on mobile).
5. The recipient scans the QR code with their Yivi app and approves the attribute disclosure.
6. The SDK retrieves a JWT from the PKG that proves the Yivi session completed successfully.
7. The SDK requests the User Secret Key (USK) from the PKG, passing the JWT and the timestamp from the ciphertext. The PKG verifies the proof and derives the USK from its Master Secret Key.
8. The SDK unseals the ciphertext using the USK, producing the original plaintext. It also verifies the sender's signature if one was present.

Streaming support

Both encryption and decryption support streaming (ReadableStream/WritableStream), so large files are processed in chunks (256 KiB by default) without loading everything into memory at once.

API Endpoints

PKG Server

Public Parameters

Method	Endpoint	Description
GET	/v2/parameters	Fetch the Master Public Key (MPK). Supports ETag/Cache-Control caching.
GET	/v2/sign/parameters	Fetch the public verification key for signature checking.

Yivi Sessions

Method	Endpoint	Description
POST	/v2/request/start	Start a Yivi identity verification session. Accepts attribute disclosure requirements.
GET	/v2/request/jwt/{token}	Retrieve the JWT result of a completed Yivi session.

Key Issuance

Method	Endpoint	Description
GET	/v2/irma/key/{timestamp}	Retrieve a User Secret Key (USK). Requires Authorization: Bearer <jwt>. The timestamp must match the one embedded in the ciphertext.
POST	/v2/irma/sign/key	Retrieve signing keys. Authenticate with either an API key (Bearer PG-API-...) or a Yivi JWT.

Health

Method	Endpoint	Description
GET	/health	Health check endpoint.
GET	/metrics	Prometheus metrics endpoint.

Authentication

The key issuance endpoints require a valid Authorization: Bearer <jwt> header. The JWT is obtained through a completed Yivi session (for end-users) or provided as an API key prefixed with PG-API- (for server-to-server use).

Cryptify Server

Method	Endpoint	Description
POST	/fileupload/init	Initialize a file upload. Returns a UUID and upload token.
PUT	/fileupload/{uuid}	Upload a chunk. Uses Content-Range headers for offset tracking. Requires cryptifytoken header.
POST	/fileupload/finalize/{uuid}	Finalize the upload after all chunks are sent.
GET	/filedownload/{uuid}	Download an encrypted file as a stream.

Component Diagram

+-------------------+          +-------------------+
|   Sender App      |          |   Recipient App   |
|  (uses @e4a/pg-js)|          |  (uses @e4a/pg-js)|
+--------+----------+          +--------+----------+
         |                              |
    encrypt                        decrypt
         |                              |
         v                              v
+-------------------+          +-------------------+
|    PKG Server     |<-------->|     Yivi App      |
|    (pg-pkg)       |  verify  |   (on phone)      |
|                   |  identity|                   |
| - Holds MPK / MSK |          | - Holds verified  |
| - Issues USKs     |          |   attributes      |
| - Issues sign keys|          +-------------------+
+-------------------+
         ^
         |
         v
+--------------------+
| Cryptify (optional)|
|                    |
| - Stores encrypted |
|   files            |
| - Sends email      |
|   notifications    |
+--------------------+

The sender and recipient applications both use the @e4a/pg-js SDK, which internally uses @e4a/pg-wasm for cryptographic operations. The sender talks to the PKG (for parameters and signing keys) and optionally to Cryptify (for file hosting). The recipient talks to the PKG, which coordinates with the Yivi app on the recipient's phone to verify identity before issuing a decryption key.
